HYBRID BEARINGS | MGP 75

Description

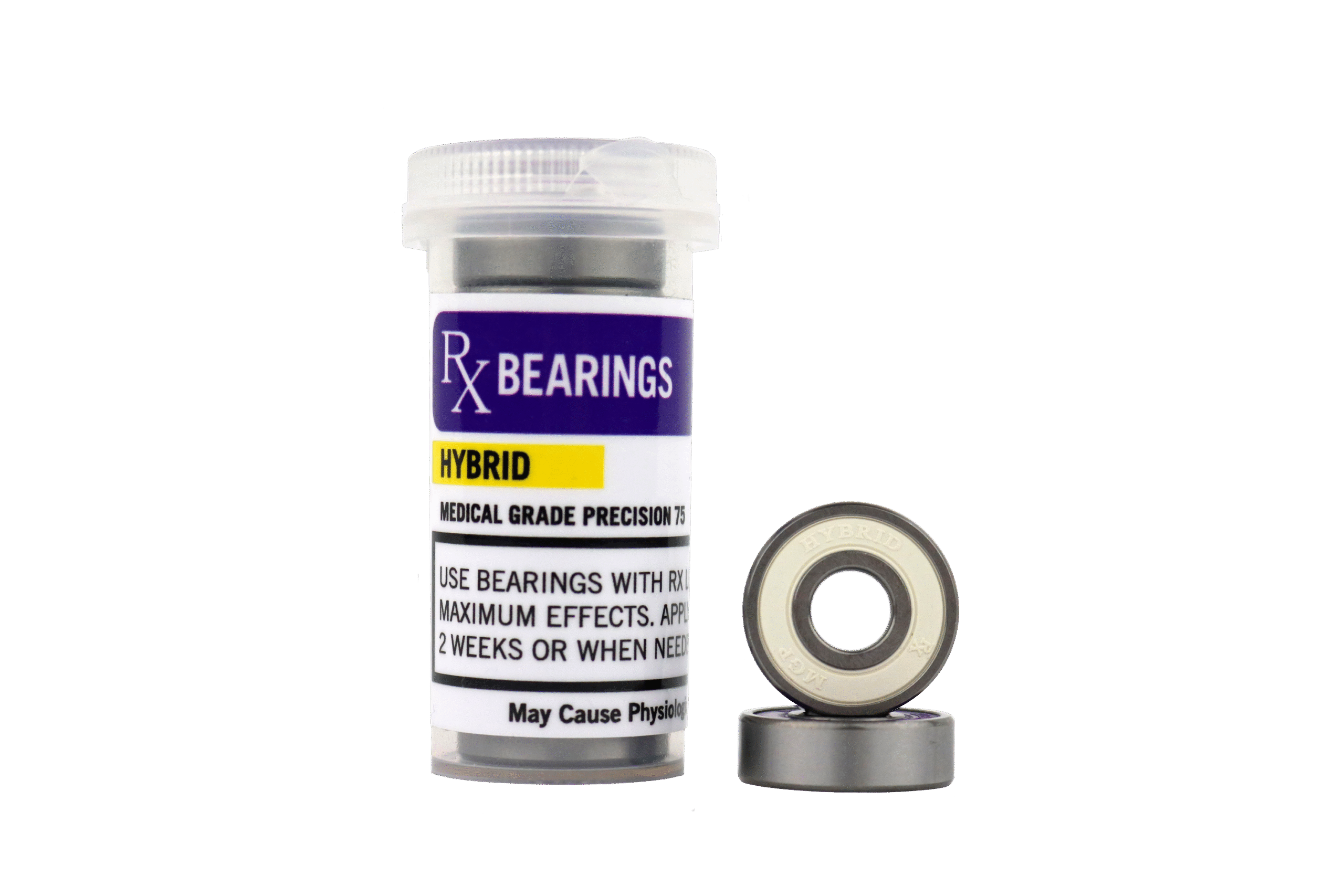

Rx HYBRID | MGP 75 PURPLE

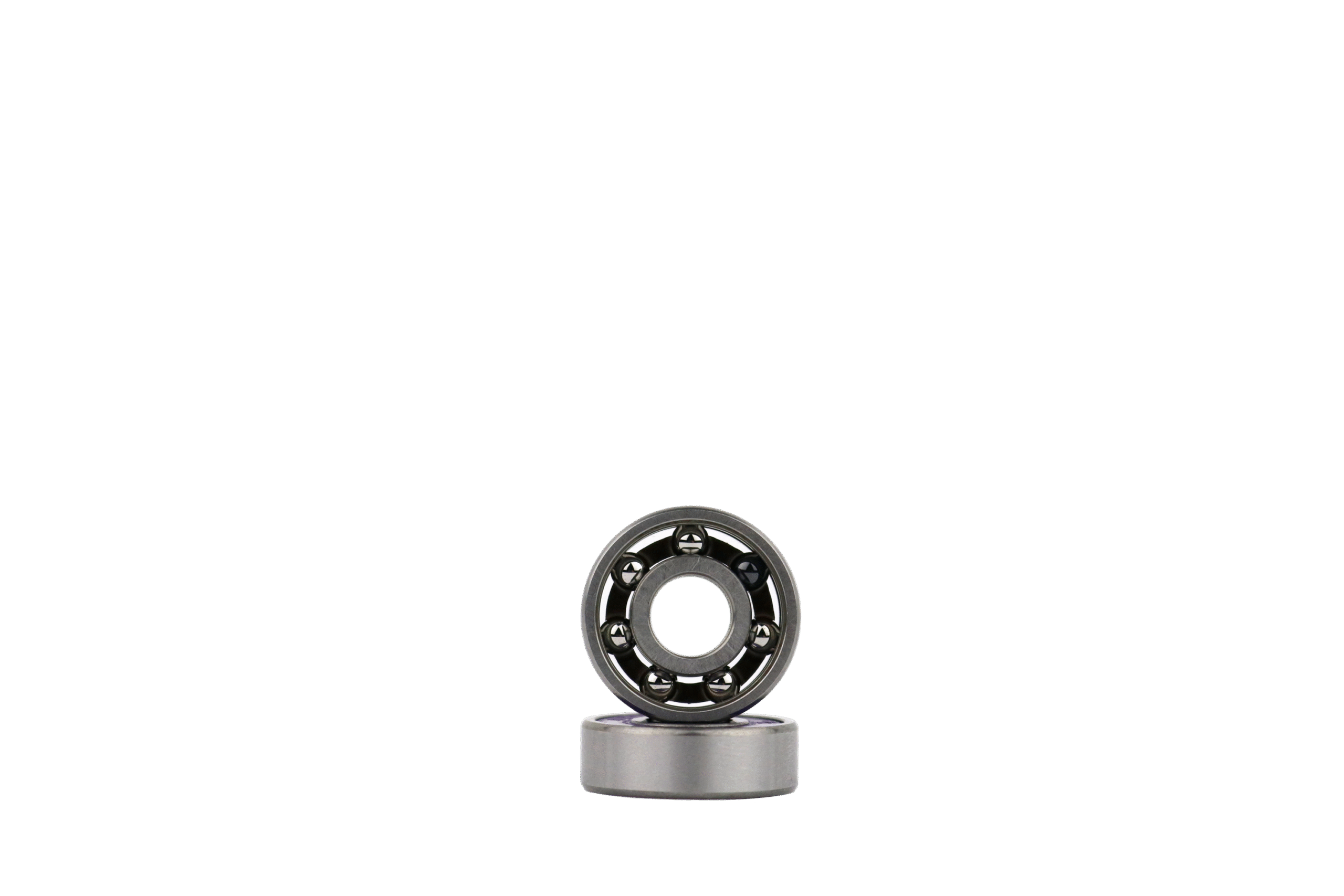

• The Rx Hybrid Polishing System consists of 1 ceramic ball and 6 steel balls.

Material Composistion
• 1 Ceramic balls is silicon nitrate (1500+ HV7)
• 6 Steel balls are 52100 carbon, chromium steel (HRC 67)
• Inner and Outter raceways are 52100 carbon, chromium steel (HRC 67)
• Retainer is 6/6 Nylon + special additive making it more resistant to breakage
• Pre-lubricated with Rx Lube Drops®, a low viscosity oil to reduce friction

Tolerances
• ABEC-7 rating, Ball deviation grade 5, Noise is under 31db.

Design Features
• Balls are highly polished to a mirror like finish
• Inner and outer races are highly polished to a mirror like finish
• Raceway is optimized for the ball and raceway contact area and contact angle.
• Removable non-contact rubber shields for easy cleaning and zero friction.

Limited Warranty
• 2 Years
